Create a Legend Item Comparison

Create a visual that compares two time legend items or more.

Access requirements

Permission with these capabilities: Ad Hoc Analysis

Reach out to your administrator for access.

Note: This type of comparison is available for the Trend visual.

Compare legend items to quickly compare up to 4 grouping attribute values in your chart.

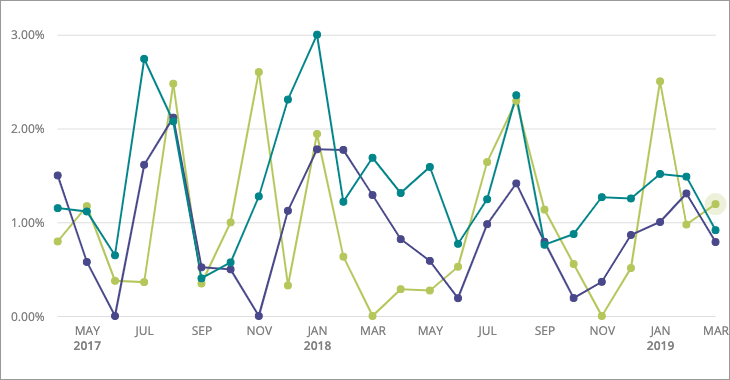

The following screenshot shows the Trend of Resignation Rate by Organization in Side By Side view, where Marketing, Product, and Sales are being compared.

Prerequisites: To perform this task, your chart must have a grouping.

  1. Click the Compare to button on the Visual Actions menu to create a comparison.

  2. In the Compare to panel, click Legend items.
  3. Select two grouping attribute values you want to compare.
  4. To add additional comparators, click Add another legend item.

    Note: You can compare a maximum of 4 legend items.

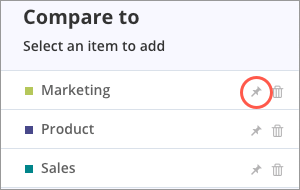

  5. To set a grouping attribute value as the baseline, click the Pin button .

  6. To change the comparison view, select an option under Adjust View in the Compare to panel.

    Note:

    • Difference and Side By Side + Difference views are only available when you have two comparators.

    • You can show differences as a count or percent. Toggle on the secondary label to show both values in the Compare to panel.
